Brake Drum Painting Booth

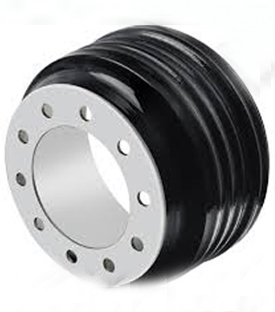

Wheel Drum or Brake Drum Wheel Drum – The drum brake system is a brake part group that allows the Vehicle to slow down and stop by heating and friction of moving parts through Friction. The heat generated does not damage the brake drum because it is made of a Durable material and designed for temperature management.
A revolving cylinder on the wheel of a vehicle or the revolving part of an engine or Machine upon which the brake shoe or brake band presses revolving cylinder on The wheel of a vehicle or the revolving part of an engine or machine upon which the brake shoe or brake band presses
Brush Painting Brake Drum Components A brake drum is a cylindrical component attached to a vehicle's wheel in a drum Brake system. It rotates with the wheel and provides a surface where brake shoes Press against it to generate friction and slow down or stop the vehicle. The drum is Typically made of cast iron for heat conductivity and wear resistance
Wheel Drums are used in every vehicle small & big, particularly cars and trucks
Painted Wheel Drums Autocoat is a 40 year old company and have worked with most of the Products & Oems; Companies, due to our experience in most of the painting & exhaust sectors, We are awarded painting booth for Wheel drum painting.
Painting methods previously used by brake drum manufacturers for painting of Drum components was with the help of standard paint brush, this method of painting Would be time consuming task and does not give a required finish.Then with improvisation in methods. Spray guns would be used for brake drum Painting .
This would give even paint coat all over the surface, but without good finish. To overcome this issue, spray painting of wheels would now be painted in a n enclosure called Brake drum painting booth.
Even today the painting of wheel drum is done in a very crude painting technique by smaller drum brake manufacturers, where they do not have a proper Brake Drum Paint Booth.
Brake Drum Paint Booth in India are now been recognized as an important requirement for good finishing technique, Safety, Painter health & Environmental safety.

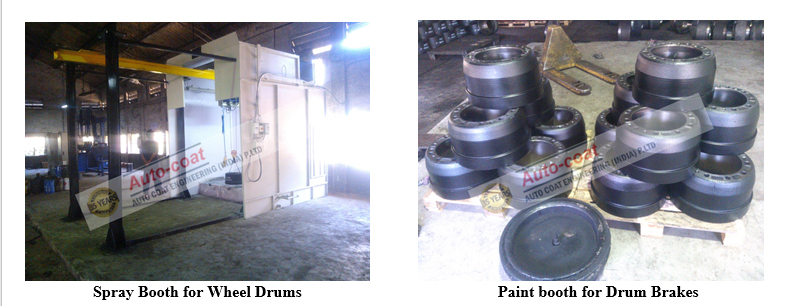

Spray Booth for Wheel drums – wheel drum painting is manufactured in 2 ways, Monorail lifting method or Roller conveyorised brake drum painting . After the manufacturing process is completed and the wheel drums are cooled off , & machining process is over , wheels are cleaned thoroughly with copper brush & air blowing .
Then the components are painted in Paint booth for drum brake.
Due to the heaviness of the product Autocoat supplies an integrated monorail system for lifting and lowering of the wheel drums , which helps the painter to avoid bending during painting , also this method ensures wheel drum at eyelevel.
Most of the manufacturers of wheel drums do use black paint for their components in mat finish with a pr primer coat for good adhesion .
For the spraying of black paint on brake drum components the following accessories are required along with a pilot spray gun , air hoses and air compressor with frl unit to remove water moisture content from the clean air to be sprayed.
The above an actual photo of Brake drum Booth in India.

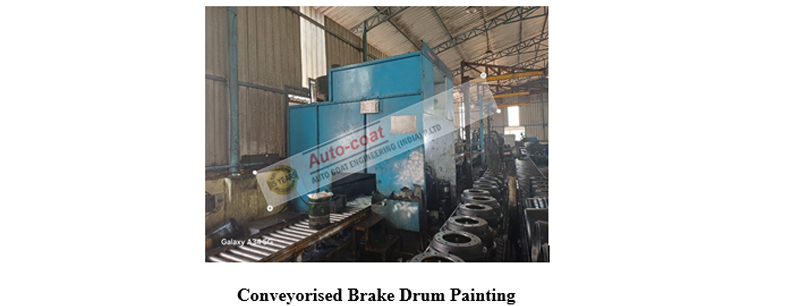

Conveyorised Brake Drum Painting is a faster way of wheel drum painting in spray painting booth for wheel drums Wheels drums are placed on manual roller conveyor in line and are pushed one by one into the paint booth, then by sliding method it is pushed on to turntable, and rotated with a soft speed manually or electrically. During this rotation painting with the spray gun is commenced. This application gives an even paint film all over the brake drum. Then these wheels are pushed to the other side of the conveyor and allowed to dry on it.
Some manufacturers also use ovens for drying the paint film on wheel drum painting line. Depending on the quality of paint, Autocoat guides its customers whether oven is required or not .Some very good quick drying paints do not need oven assistance for drying.
With the growth in automobile sector, and necessity of higher production of wheel drums, Wheel Drum Paint Booth is a must for the operators safety & to avoid environmental hazards.
We Conceive Design , Engineer, Manufacture & Stands Behind Our Products Autocoat Engineering has been leading manufacturer of variety of spray booths , downdraft paint booths , side draft painting booths , Conveyorised wheel drum painting line , customized spray paint booths since 1985.
For the last 40 years Autocoat Engineering is constantly promoting modern technology in all kinds of product coating & metal finishing. Autocoat is a paint booth manufacturer in India, Thane
Our Office & Factory Both are located in Thane. Designing & calculation are the main keys on which we focus before any kind of manufacturing in Thane unit. Other local manufacturers in Maharashtra believe in only supplying material but at Autocoat every painting booth is manufactured, assembled, numbered, tested, live trials are given to customers for their complete satisfaction.
