A pump is a device that moves fluids , liquids or gases , or sludge, by mechanical action .This Mechanical action can be reciprocating or rotary motion, and consume energy to perform mechanical work moving the fluid. There are different types of pumps available in the market. The paint applied over the pump also depends on the type of application. The application mainly includes the type of fluid you desire to pump, the distance you desire to move the fluid, and the quantity you require to get over a particular time frame. However, it is complicated to recognize accurately what kind of pump you must select. The identifying of the pump can be done with the design as well as positions.

Paint Booth Cost?

Spray booth for Pumps � Autocoat Engineering has a long experience & expertise in supplying paint shops for �Electric Motors/Pumps, We wish to introduce our company in the field of manufacturing of Spray Booth for Pumps for painting pumps in the right way. For any Painting line process development is very important. Once the process is set, the quality improvement can easily be achieved.

                                         Pretreatment of valve casting for surface preparation Spray Painting process to be conducted in a Pump paint booth - The paint has excellent resistance to various chemicals , moisture & salts in the atmosphere. Before any paint film is applied surface preparation is a must . Pumps have multiple components , cast iron , en8 , shafts , stainless steel etc .Each part need to be treated separately due to the metallurgic properties. Some components like shaft are to be kept unpainted surfaces , so that they do not loose their mechanical properties.

The following surfaces will not require protective coating. To determine unpainted areas eg Anodized Aluminum Grounding Pads Brass Machined Surfaces Bronze Motor Leads Chromium Plated Metals Porcelain Enamel Finishes Copper Rubber Galvanized Steel Stainless Steel Glass.

Aircraft  Spray Booth Aircraft  Spray Booth Stage 1 - Pre-treatment of Pump casting before sending to paint booth for pumps. Cleaning & pre-treatment of cast surface is most important stage , as soon as casting are checked and ok for further process. The pre-treatment of pump casting can be achieved by minimum of seven tank process or 10 tank process. If motors/Pumps are to be used for corrosive atmosphere, or for outdoor application , we recommended 7 stage zinc phosphating. This process can even be carried out by Shot Blasting Method. For more information Contact Us. Once a phosphate coat is applied , pump cast to be transferred to pump paint booth .

Aircraft  Spray Booth Stage 2 � Electric Pump painting � Usually small pump casting are placed over a jig so that, multiple casting can be painted with primer or red oxide in the pump paint booth. With jigs at use and right spray guns desired paint film in microns is achieved. Larger & heavier pump casting are to be painted singularly , material handling is preferred in this case. With the selection of right paint booth undesired over sprays are removed from the painting area , thereby creating a smooth finish over the cast.

Aircraft  Spray Booth Stage 3 � Application of primer for additional coat building & repainting before final finish coat can be applied. At assembly stages & water testing stage pump primer surface often tend to get grease & oil marks. At water testing stage even there is a change of percolation of water in the pump cavities. These marks are to be removed thoroughly with cleaners and again a mid primer coat is applied in the pump spray booth. We also recommend an air blowing facility to remove the trapped water.

Stage 4 � Application of final finish colour to assembled pump � After the above stage the assembled pumps are either dried on conveyor for pump painting/drying or by other batch process or directly wet on wet process. The finish paint is applied by two methods for smaller pumps Conveyorised pump painting method & for Large frame size Paint booth for pumps with material handling equipment.
Aircraft  Spray Booth Aircraft  Spray Booth

Autocoat has supplied many Pump paint booths as well as conveyorised pump painting lines, which are running almost in 3 shift basis trouble free. We have designed, developed & manufactured Slat Conveyor for heavy assembled pump painting. Conveyorised pump painting is very fast & economical.

Aircraft  Spray Booth

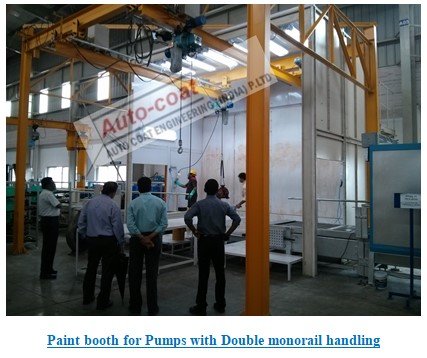

We have also developed, industrial pump painting with monorail handling equipment for heavy pumps (centrifugal pumps) with heavy duty slat conveyor for transit , this method enhances the capability of the painter to lift , lower & also to rotate the heavy pumps. Our Pump spray booths are very efficient & match the pollution board norms. Training sessions are been conducted to educate the painters & subordinates to get maximum productivity & effective maintenance. Our major clients from Pump industry are Ksb Pumps , Idex cooperation , Kishor Pumps Ltd , Investa Pumps, & many more.
